Product |
Commercial model |
|
55A6F3 |
|
Description |
|

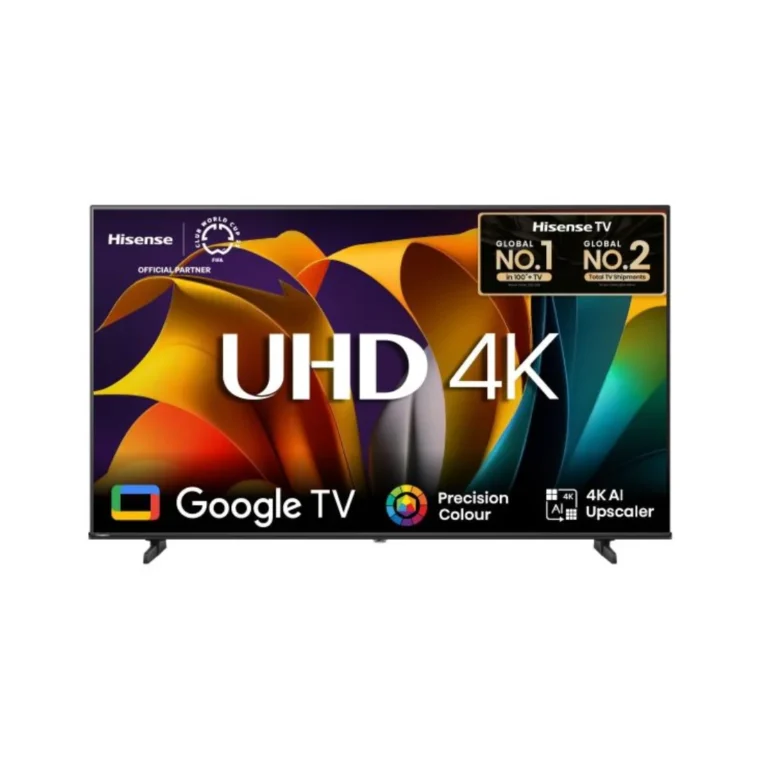

55″ 4K Google TV |
|
|
|
|
Image display |
Panel manufacturer |
|
Hisense |
|
Panel model |
|
HD550Y1U51-T0L8 |
|
Active display area, horizontal dimension |
mm |
1209.6 |
|
Active display area, vertical dimension |
mm |
680.4 |
|
Screen size (rounded to nearest integer) |
cm |
139 |
|
Screen size (rounded to nearest integer) |
inch |
55 |
|
Display technology |
|
LCD/ LED lit |
|
Backlight source |
|
Direct LED |
|
Resolution (Horiz x Vert) |
pixel |
3840X2160 |
|
Screen curvature radius |
mm |
– |
|
Colour depth |
bit |
8bit+FRC |
|
Image refresh frequency |
Hz |
60 |
|
Smooth motion rate |
|
120 |
|
3D image |
|
– |
|
Typical brightness of white |
cd/m2 |
350 |
|
Native contrast ratio |
|
4000 : 1 |
|
Viewing Angle (Horiz / Vert) |
Degrees |
178/ 178 |
|
Quantum dot |
|
No |
|
Wide colour gamut |
|
No |
|
KSF phosphor |
|
No |
|
UHD Premium |
|
No |
|
Response Time |
ms |
8 |
|
|
|
|
Connectivity |
RF- Radio frequency input |
|
1 |
|
AV input |
|
1 |
|
AV output |
|
0 |
|
USB interface type 3.0 (Qty / List….) |
|
0 |
|
USB interface type 2.0 (Qty / List ….) |
|
2/ USB1,USB2 |
|
Optical digital audio output (SPDIF) |
|
1 |
|
Earphone jack |
|
1 |
|
|
|
|
HDMI ports |
HDMI inputs |
|
3 |
|
HDMI type 8K@60Hz |
|
No |
|
HDMI type 4K@60Hz with HDCP version 2.2 |
|
Yes |
|
HDMI 2.1 compliant input (4K@120Hz) |
|
No |
|
Enhanced Audio Return Channel ( eARC) |
|
Yes / HDMI 1 |
|
CEC- Consumer Electronics Control via HDMI |
|
Yes |
|
|
|
|
Smart TV |
Ethernet port (RJ45 connector) |
|
1 |
|
Wi-Fi protocols IEEE 802.11 {b, g, n, ac, ax, ..} |
|
a, b, g, n, ac |
|
Wi-Fi bands |
GHz |
2.4/5.0 |
|
DLNA compliance |
|
Yes |
|
Bluetooth / BT version |
|
Yes / 5.0 |
|
Anyview (Screen mirroring) |
|
Yes |
|
BVOD services (Iview, SBS on Demand, 9Now, 7Plus, Tenplay) |
|
– |
|
Installed Applications {List ……} |
|
Netflix, Prime Video, Youtube, |
|
Freeview Plus – HbbTV 2.0 |
|
No |
|
Web browser [Chrome | Opera | Other] |
|
Odin |
|
|
|
|
Tuner/ Broadcasting |
Digital broadcating (DVB-T / DVB-T2) |
|
Yes / Yes |
|
Video decoder (MPEG2 / MPEG 4) |
|
Yes / Yes |
|
LCN- Logical channel number and DTV Service name support |
|
Yes |
|
Teletext / Teletext signal interruption (TAB compliant) |
|
Yes / Yes |
|
Subtitles |
|
Yes |
|
EPG- Electronic programming guide, 7 days for all services |
|
Yes |
|
Audio description (vision impairment aid) |
|
Yes |
|
Parental rating lock |
|
Yes |
|
Analog Tuner |
|
Yes |
|
|
|
|
Image processing |
Backlight control |
|
YES |
|
Light sensing |
|
No |
|
Dynamic backlight control |
|
YES |
|
Frame rate control |
|
No |
|
Variable Refresh Rate (VRR) |
|
Yes |
|
FreeSync |
|
No |
|
Auto Low Latency Mode(ALLM) |
|
Yes |
|
Local dimming/ controllable zones |
|
No |
|
Zoom function settings |
|
Automatic/ 16:9/ 4:3/ Panoramic/
Movie Zoom/ Direct/21:9/32:9 |
|
HDR – High Dynamic Range for luminance (DMP / Netflix / HDMI) |
|
Yes/ YES / YES |
|
HDR system (HDR10 / HDR10+ / Dolby Vision) |
|
Yes/ No / YES |
|
HLG (Hybrid Log-Gamma) for HDR |
|
Yes |
|
HEVC (H.265) decoder |
|
Yes |
|
Motion enhancement and compensation (MEMC) |
|
Yes |
|
Picture mode |
|
Dynamic,standard,Natural,Game,Sports,Cinema,Calibrated,FILMMAKER MODE |
|
|
|
|
Sound |
Audio power output per channel |
Watt |
10 |
|
Number of speakers (Tweeter / Midrange / Woofer) |
|
0/2/0 |
|
Automatic volume level (AVL) |
|
Yes |
|
Audio equalizer |
|
Yes |
|
Dolby Digital |
|
Yes |
|
Audio enhancement -Type {SRS, BBE, SAP, DBX-TV….} |
|
Dolby ATMOS |
|
Lip-sync adjustment |
|
Yes |
|
Sound mode |
|
Standard,Theatre,Sports,Music,Speech,Late Night |
|
|
|
|
Features |
On/off timer |
|
Yes |
|
Power off if no signal |
|
Yes |
|
Sleep timer |
|
Yes |
|
Program lock |
|
Yes |
|
OSD transparency control |
|
No |
|
User interface |
|
Google TV |
|
Software version OSD indication |
|
Yes |
|
Legal requirements: Disclaimer / Acceptance of Terms |
|
Yes / Yes |
|
Favourite channels list |
|
Yes |
|
Electronic point of sales (E-POS) |
|
Yes |
|
OTA- Over the air software updates |
|
Yes |
|
Voice command |
|
Google Assistant/Far Field Voice Control |
|
Screen mirroring {Miracast, Anyview Cast, …} |
|
DLNA / Chromecast / Miracast / AirPlay |
|
Smartphone remote control application {VIDAA app, …} |
|
No |
|
Replaceable demo video for Store mode |
|
Yes |
|
Remote control via serial port |
|
No |
|
|
|
|
USB media player |
Personal Video Recorder |
|
Yes |
|
Time Shift |
|
Yes |
|
DTV Recording (EPG scheduling / start from Standby ) |
|
Yes / Yes |
|
DivX decoder |
|
No |
|
MPEG4 (H.264) / H.265 decoder |
|
Yes / Yes |
|
DMP- Digital media player content (Music / Video / Photos / Text) |
|
Yes / Yes / Yes / No |
|
DMP Auto-play |
|
No |
|
DMP for UHD content via USB |
|
Yes |
|
DMP File allocation table (FAT / FAT32 / exFAT / NTFS) |
|
No / Yes / No / Yes |
|
PVR File allocation table (FAT / FAT32 / exFAT / NTFS) |
|
No / Yes / No / Yes |
|
|
|
|
Hotel lock |
Protected Hotel lock submenu (Password / fixed code) |
|
No / No |
|
Clone function for programs, sound and image settings. |
|
No |
|
Sub-menu lock, including tuning lock |
|
No |
|
Keyboard lock |
|
No |
|
Maximum volume lock |
|
No |
|
Power on volume |
|
No |
|
Power on, apply default sound/image settings |
|
No |
|
Power on source selection |
|
No |
|
Power on RF channel selection |
|
No |
|
Power on mode (On / Standby / Last) |
|
No / No / No |
|
Inputs access (Enable / Disable) |
|
No |
|
|
|
|
Hardware |
Processor / Cores |
|
MT9612IAATNC / 4 |
|
Dual Tuner |
|
No |
|
Colour (Front bezel, rear, stand) |
|
Gray / Black / Gray |
|
Speakers mounted in enclosure |
|
No |
|
Mains power switch |
|
No |
|
Swivel base |
|
No |
|
Compact packaging |
|
Yes |
|
Supply range [Voltage / Frequency ] |
Volt / Hz |
100 ~ 240V,50Hz/60Hz |
|
Standby consumption |
Watt |
< 0.5W |
|
Maximum time delay Power On to sound an image |
sec |
30 |
|
|
|
|
|
|
|
|
Installation |
Stand area (Width / Depth) |
mm |
921×298 |
|
Wall mount dimensions (Horiz x Vert) |
mm |
200×300 |
|
Wall mount, screw thread |
mm |
M6 |
|
VESA compliance |
|
Yes |
|
Detachable power cord |
|
Yes |
|
Power cord length |
cm |
155 |
|
|
|
|
|
|
|
|
Accessories |
Remote controller (Technology / Part number ) |
|
BT / ERF3AC80H |
|
Battery (size / quantity) |
|
AAA/ 2 |
|
User manual (Available online) / Quick setup guide (Print) |
|
1 / 1 |
|
Warranty [In User manual | In separate sheet] |
|
In separate sheet |
|
Skype camera (Qty / Part number) |
|
– |
|
3D glasses type [Passive | Shutter] / Link [RF | IR | BT] |
|
– |
|
3D glasses (Qty / Part number) |
|
– |
|
|
|
|
Dimensions |
Dimensions with stand (W x H x D) |
mm |
1232×752×298 |
|
Dimensions without stand (W x H x D) |
mm |
1232×711×74 |
|
Carton box dimensions (W x H x D) |
mm |
1364×142×827 |
|
Net weight (with stand / without stand) |
kg |
11.5kg /11.3kg |
|
Gross weight |
kg |
17.5 kg |
|
Container load (20ft / 40ft / 40ft HC) |
|
132/270/405 |
|
|
|
|
Licensing and certification |
EMC- Electromagnetic Compatibility |
|
Yes |
|
CB- Electrical safety |
|
Yes |
|
HDMI |
|
– |
|
Dolby Digital |
|
Yes |
|
MEPS- Test report |
|
– |
|
ROHS |
|
– |
|
Electrical safety conformity for Australia |
|
– |
|
|
|
|
Documentation |
CB report and certificate |
|
Yes |
|
EMC report and certificate |
|
Yes |
